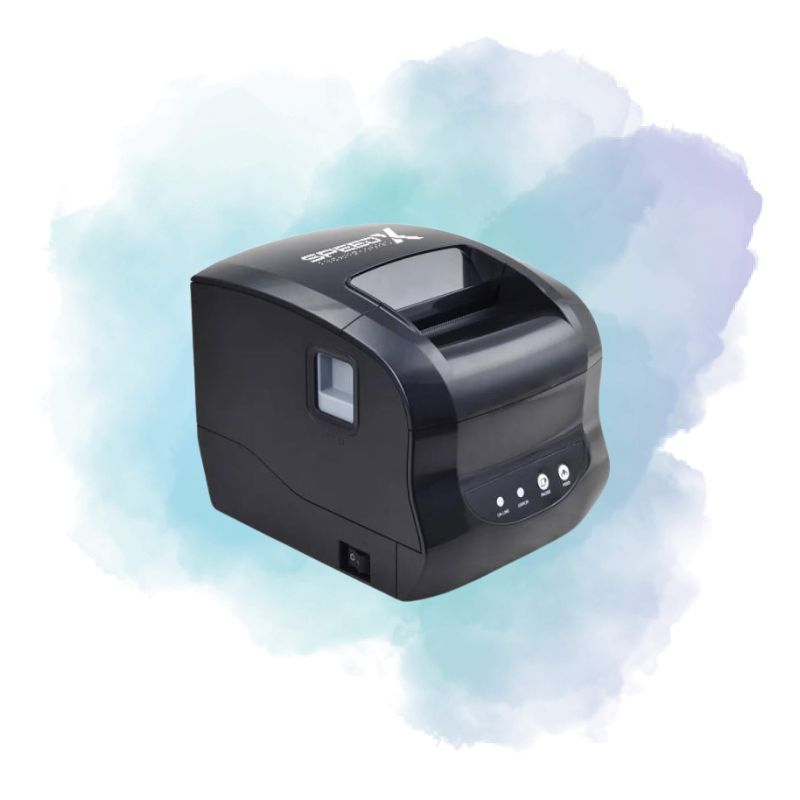

SPEED-X SP-650UL 3 Inch Thermal Receipt & Label Printer USB+LAN

The SPEED-X SP-650UL is a versatile 3-inch thermal printer designed to handle both receipt and label printing with exceptional reliability and performance. Featuring direct thermal technology with a crisp 203 DPI resolution and a print speed of 127mm/s, this printer delivers sharp, professional-quality output for thermal roll paper and thermal adhesive labels alike. With support for media widths from 20mm to 80mm and a maximum roll diameter of 82mm, the SP-650UL offers the flexibility to handle a wide range of printing applications, from retail receipts to shipping and product labels.

Equipped with USB and LAN interfaces, this printer integrates seamlessly into any POS system or network environment, ensuring stable and fast data transfer. The easy paper loading system minimizes downtime, while built-in sensors for print head temperature, paper end, and cover open ensure reliable, trouble-free operation. Supporting both TSPL and ESC/POS emulation, along with comprehensive 1D and 2D barcode printing capabilities including QRCODE, PDF417, and DataMatrix, the SP-650UL is the perfect solution for retail stores, warehouses, and logistics operations. With a durable print head life of 100km and a compact, lightweight design, this printer delivers long-lasting performance in any workspace.

Specifications

• Model: SP-650UL
• Printing Method: Direct Thermal
• Resolution: 203 DPI
• Max Print Speed: 127 mm/s
• Media Types: Thermal Roll Paper, Thermal Adhesive Paper
• Media Width: 20 ~ 80 mm
• Media Thickness: 0.06 ~ 0.19 mm
• Media Roll Diameter: Max 82 mm
• Paper Loading: Easy Paper Loading
• RAM: 4 MB
• Flash: 4 MB
• Interfaces: USB, LAN
• Sensors: Print Head Temperature, Paper End, Cover Open
• Drawer Port: 1 Port (Pin 2 for Cash Drawer)
• Character Sizes: FONT 0 to FONT 8, K, TST24.BF2, TSS24.BF2
• 1D Barcode Support: CODE128, EAN128, ITF, CODE39, CODE39C, CODE39S, CODE93, EAN13, EAN13+2, EAN13+5, EAN8, EAN8+2, EAN8+5, CODABAR, POSTNET, UPC-A, UPCA+2, UPCA+5, UPCE, UPCE+2, UPCE+5, MSI, MSIC, PLESSEY, ITF14, EAN14
• 2D Barcode Support: PDF417, QRCODE, DataMatrix
• Emulation: TSPL, ESC/POS
• Product Dimensions: 212 x 140 x 144 mm (D x W x H)
• Weight: 0.94 kg
• Print Head Life: 100 km
• Driver Support: Windows, SDK for iOS/Android/Windows
• Power Supply: DC 24V/2.5A
• Operating Environment: 5 ~ 45°C, RH 20 ~ 80%
• Storage Environment: -40 ~ 55°C, 93% RH
