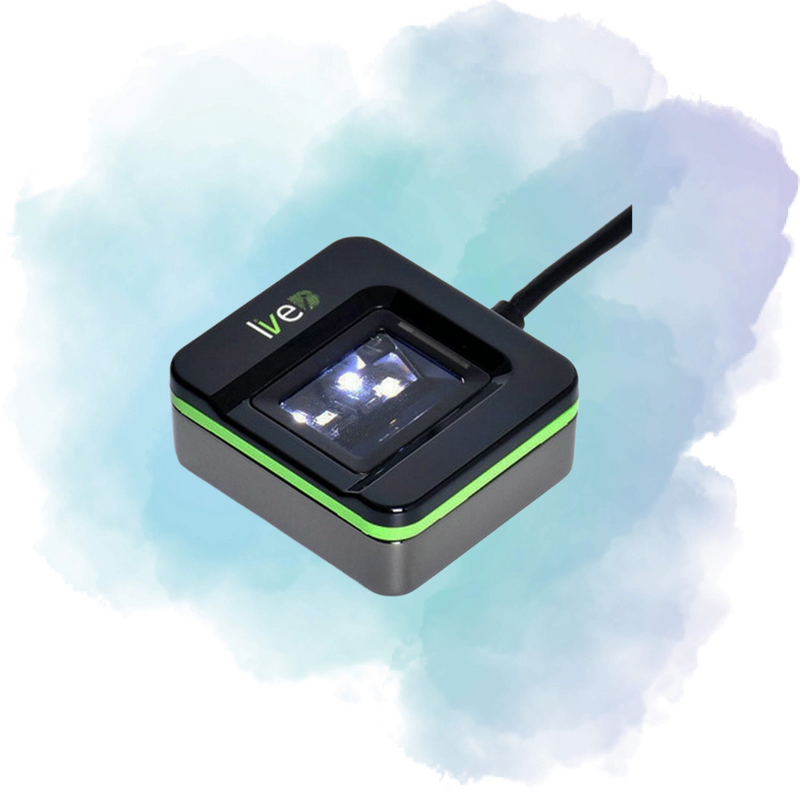

ZKT Live20R High Performance USB Fingerprint Reader (500 DPI) – Android, iOS, Windows & Linux Supported

The ZKT Live20R is a compact, high-performance optical fingerprint reader designed for secure authentication and attendance systems. Built with a durable solid steel body and advanced 500 DPI sensor technology, it delivers fast, accurate, and reliable fingerprint recognition in all environments.

It supports multiple operating systems including Windows, Linux, Android, and iOS, making it ideal for enterprise security, employee attendance, access control, and embedded system integration. With encrypted data processing and SDK support, developers can easily integrate it into custom applications.

Specifications

• Sensor Type: Optical fingerprint sensor (FAP20 standard)
• Resolution: 500 DPI, 256 grayscale (8-bit)
• Image Size: 300 × 400 pixels
• Scan Area: 15.24 mm × 20.32 mm
• Interface: USB 1.1 (backward compatible with USB 2.0/1.0)
• Scan Speed: < 0.5 seconds
• Rotation: 360° support
• Operating Temp: -20°C to 50°C
• Humidity: 0% – 90%
• Power Supply: 5V ±0.25V (USB powered)
• Current:
  • Capture: max 250mA
  • Idle: max 25mA
  • Sleep: <0.5mA
• Cable Length: 180 cm
• Dimensions: 124.5 × 102 × 34 mm
